Solyug Energy provides solar shadow analysis reports that quantify exactly how shading affects a project's energy generation before construction begins mapping sun-path movement, real site obstructions, and inter-row shading to recommend panel placement that minimizes lifetime energy loss. Our solar shading analysis services cover both rooftop shadow analysis for solar installations with real obstructions like tanks and adjacent buildings, and ground-mount inter-row shading studies for utility-scale layouts. Shading loss is one of the most common gaps between a project's projected and actual generation and one of the most preventable, when it's properly analyzed and designed around before the layout is finalized rather than discovered afterward.
Critical Engineering Standard: We simulate shadows across the complete 365-day solar cycle with strict focus on the Winter Solstice (December 21, 9:00 AM – 3:00 PM) to eliminate bypass diode activation, prevent localized cell hotspots, and protect projects from 15%+ lifetime revenue leakage.
Shadow Analysis Simulation Model
Simulate dynamic sun-path trajectories, hourly azimuth angles, and real-time shadow projection vectors across rooftop and ground-mount arrays. Adjust the interactive solar clock below to evaluate near-shading impact, inter-row clearance, and diurnal generation loss in real time.
3D Sun-Path Trajectory
Sun-path diagram tailored to site-specific GPS coordinates, mapping solar elevation and azimuth across all 8,760 hours of the year.
Obstruction & Horizon Mapping
Drone photogrammetry and CAD-derived 3D mapping of parapets, water chillers, chimneys, transmission lines, and adjacent high-rises.
Near-Shading & Diode Analysis
Micro-level string-by-string shadow modeling to avoid partial cell shading, reverse-bias heating, and string mismatch penalties.
Horizon Far-Shading Study
Digital Elevation Model (DEM) horizon profiling to assess early morning and late evening mountain/topographical clipping.
Quantified Loss Breakdown (kWh)
Granular monthly and annual shading loss metrics (%) integrated seamlessly with bankable PVsyst simulation reports.
Inter-Row Pitch Optimization
Calculated table-to-table pitch distances that balance Ground Coverage Ratio (GCR) against winter morning mutual shading.
Array Re-Layout & Stringing
Actionable layout restructuring, string partitioning, and module relocation plans to maximize unshaded yield per square meter.
Validate Your Design Parameters
Review a comprehensive shadow analysis report from a recent 500kWp commercial installation. View actual simulation outputs and structural recommendations.
Tools & Methodology We Use
Leveraging 3D LiDAR point clouds, SketchUp Skelion, Helios 3D, and PVsyst V8.0 to eliminate bypass diode mismatch losses and optimize pitch spacing across utility-scale and C&I rooftops.
Sun-Path Diagram & Obstruction Mapping
We generate a sun-path diagram specific to the project's exact latitude and longitude, then map every real obstruction from site survey data, drone imagery, or satellite data onto the site model. This combination shows precisely when and how each obstruction casts a shadow across the array throughout the year, not just at a single point in time.
Near-Shading vs Far-Shading Loss
We separate near-shading (close obstructions like tanks, parapets, or adjacent panel rows, which cast sharp, well-defined shadows) from far-shading (distant horizon obstructions like hills or tall buildings, which affect only low-sun-angle hours near sunrise and sunset) because each is caused by different site factors and responds to different mitigation strategies. Treating them as a single combined loss figure, as some simplified analyses do, obscures which specific obstruction is actually costing the most generation
Row Spacing Recommendations
For ground-mount and multi-row rooftop layouts, we model inter-row shading loss across a range of row spacing options, showing the generation trade-off against land or roof area utilization so the final spacing decision is based on quantified numbers, not a fixed rule-of-thumb pitch applied regardless of site latitude.
Panel Re-Layout Suggestions
Where the shading analysis identifies a layout change that meaningfully improves generation repositioning a row, adjusting string boundaries around a partial-shading zone, or shifting away from a specific obstruction we provide concrete re-layout recommendations rather than only reporting the loss figure, so the finding is directly actionable in the next design stage.
Why Shadow Analysis is Critical for Solar Yield
Even partial shading on a small portion of a solar array can disproportionately reduce output a single shaded cell can drag down the performance of an entire string, not just the panel it falls on. Shadow analysis exists to catch this before construction, when panel placement can still be adjusted, rather than after installation, when correcting it means physically relocating structure and cabling. Real-world shading loss varies significantly by project type and site conditions. As a solar panel shading study company working across both rooftop and ground-mount projects, we see a consistent pattern in how much annual generation is actually at stake
Shading Analysis Diagram

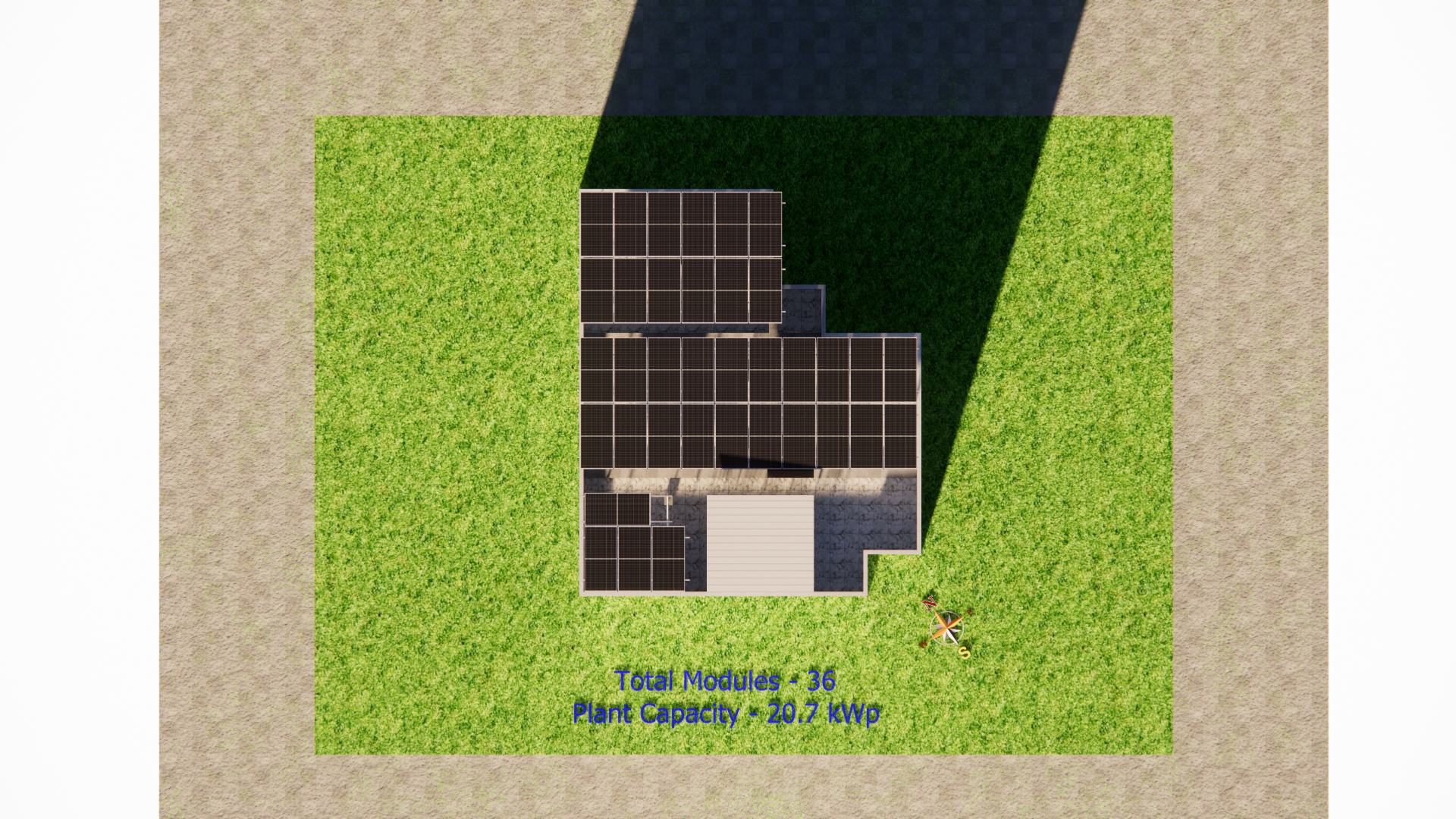

FIG 1.0 - Structural shadow path simulation over time.
Request a Shading Study
Ensure your site is optimized before deployment. Our engineers use advanced 3D modeling to simulate year-round shadow impact.
Typical Generation Loss by Site Condition
Quantified empirical yield variance observed across 520+ MW of modeled solar assets.
| Project Scenario | Est. Loss | Primary Factor |
|---|---|---|
Rooftop (dense urban / obstructed) Heavy parapet, cooling tower, and adjacent industrial HVAC shadow overlap | 2% - 8% | Near-shading from tanks, parapets, adjacent buildings, ducts |
Rooftop (clear roof, minimal obstruction) Clean industrial RCC / sheet roof with minimal elevator shafts or vents | < 2% | Minor near-shading, occasional far-shading from horizon |
Ground-mount (optimized row spacing) Engineered pitch and tilt designed for Dec 21 9:00 AM – 3:00 PM zero shadow | 1% - 5% | Inter-row (near) shading, primarily in winter months |
Ground-mount (constrained land / tight spacing) Sub-optimal GCR (>0.45) causing inter-row morning and late afternoon clipping | 5% - 10%+ | Tighter row spacing to maximize land utilization |
What We Deliver for MW-Scale Projects
From 5 MW to 100+ MW utility-scale solar parks, our engineering blueprints integrate GIS topography, STAAD.Pro structural wind dynamics (IS 875 Part 3), HT grid transmission layouts, and bankable PVsyst yield models.
Topographic Site Layout
Topographic survey-based site layout and land-use planning
Row Spacing & Shading
Row spacing and inter-row shading optimization across the full plot
MMS Structural Design
Structural design for fixed-tilt and single-axis tracker mounting systems
STAAD.Pro Wind Load
STAAD Pro wind load analysis suited to the project's specific region
Soil Foundation Design
Foundation design based on site-specific soil conditions
MV/HV Cable & Yard
MV/HV cable routing and substation layout for grid interconnection
Electrical SLD & Relays
Complete electrical design (SLD, string sizing, protection coordination)
Itemized Procurement BOQ
Bill of Quantities (BOQ) for accurate procurement at scale
Rooftop vs Ground-Mount Shading Considerations
Shading analysis approaches differ meaningfully between rooftop and ground-mount projects, since the dominant shading sources are different in each case.
Rooftop
shading is typically driven by fixed, real obstructions water tanks, HVAC ducts, parapet walls, and adjacent buildings that can't be moved, so the analysis focuses on optimal panel placement and layout adjustment around them.
Ground-mount
shading is primarily a design choice inter-row near shading between panel rows, controlled by row spacing which trades off against land utilization. Far-shading from horizon obstructions also matters more here given the typically larger, more open sites.
Both project types benefit from the same underlying discipline quantifying shading loss precisely rather than estimating it but the layout and structural design response differs by project type. See our Ground Mount Design and SketchUp 3D Design services for how shadow analysis findings carry into layout finalization.
Before & After: Shading Optimization Example
Embed a real before/after visual comparison here original layout with shading losses highlighted, alongside the optimized layout after re-layout recommendations as a standard element with descriptive alt text. This format performs well in both image search and social sharing.
